Grade 3/4 Fraction Action

Recently, I was invited into three Grade 3/4 classrooms to introduce fractions.

Cuisenaire rods give children hands-on ways to explore the meaning of fractions. After students built their towers, flowers, and robots, I asked, “If the orange rod is the whole, which rod is one half?” Students explained their thinking: “two yellows make an orange.” I emphasized, or rather, students emphasized that the two parts must be equal.

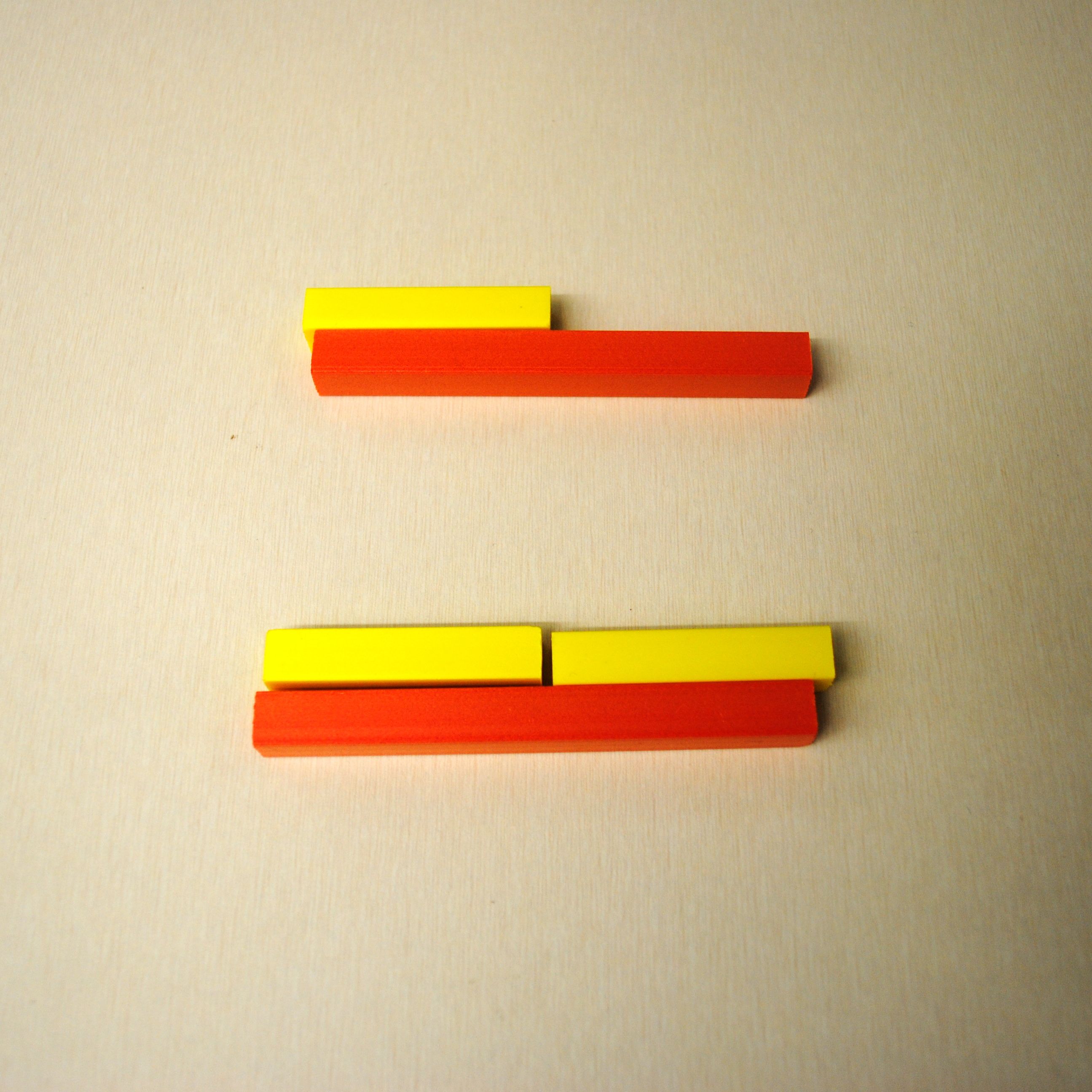

yellow orange

I asked students to find as many pairs as they could that showed one half. I let ’em go and they built and recorded the following:

one half

Once more, with one third:

one third

As children shared their pairs, we discussed the big ideas:

  • the denominator tells how many equal parts make the whole (e.g., two purple rods make one brown rod, three light green rods make one blue rod)
  • the same fraction can describe different pairs of quantities (e.g., one half can be represented using five different pairs, one third can be represented using three different pairs)
  • the same quantity can be used to represent different fractions (e.g., white is one half of red and one third of light green, red is one half of purple and one third of dark green, etc.)

Something interesting and outside the lesson plan happened in each of these three classrooms.

Some students described each pair of rods using equivalent fractions (e.g., 1/2, 2/4, 4/8):

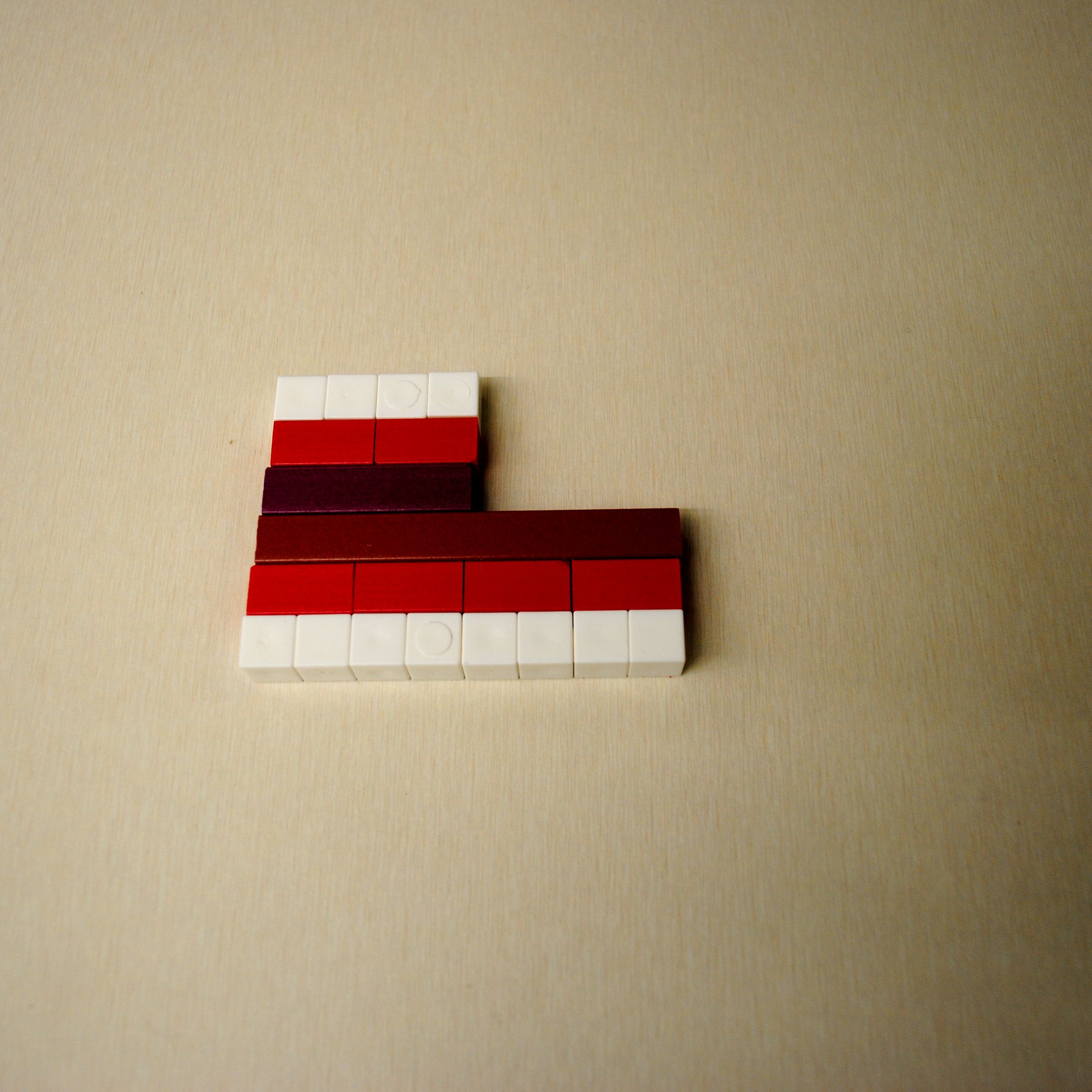

equivalent fractions

I asked the “we’re done” students to represent their own fractions using pairs of rods and determine each other’s mystery fraction. Many students chose fractions like 2/5 or 3/4, not simply unit fractions:

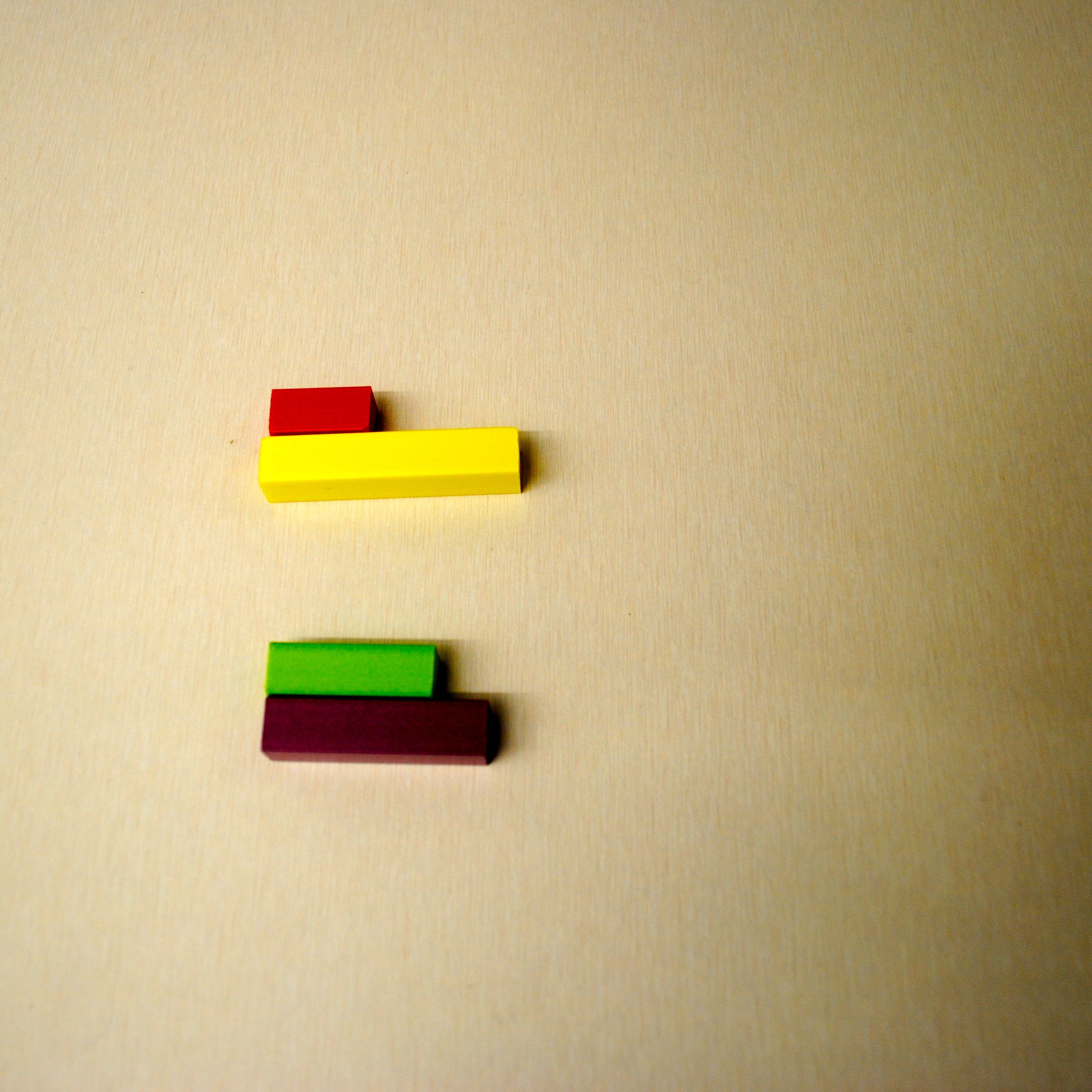

two fifths three quarters

After students shared the three pairs of rods for one third, I asked if anyone found any more. “I did,” said one student, unexpectedly. Check this out:

four twelfths

I asked her why she chose to combine an orange rod and a red rod to make the whole. She explained that twelve can be divided into three equal parts. Without prompting, the rest of the class starting building these:

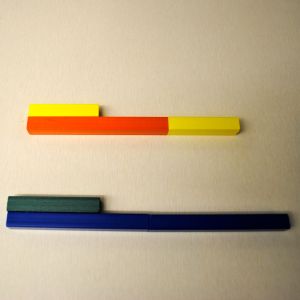

five fifteenths six eighteenths

adapted from The Super Source

Posted on

Marriage Problem

Last week, we wrapped up our winter sessions with over 50 elementary school math teams. Part of these sessions are devoted to having teachers work together to solve problems. Having teachers “do the math” helps brings meaning to important topics in mathematics education. We gave the following problem, from Van de Walle:

In a particular small town, 2/3 of the men are married to 3/5 of the women. What fraction of the entire population are married?

This is a challenging problem, but only because traditional algorithms get in the way of sense-making methods. The gut reaction is to do something with common denominators. Time after time, with each group, primary and intermediate. Through questioning, the mistake can be recognized.

“In this context, what does the 15 over here represent?” [points to 10/15]
“The total number of men.”
“And over here?” [points to 9/15]
“The total number of wom–OOOOOh…”

Sometimes, it takes longer to reach an ‘OOOOOh’:

“What does the 10 represent?”
“The number of married men.”
“And the 9?”
“The number of married wom–OOOOOh…”

Once teachers realize that having 10 men married to 9 women is somewhat problematic, most model the problem using colour tiles. Two out of three men being married becomes four out of six and six out of nine. Three out of five women being married is equivalent to six out of ten. Six pairs of husbands and wives can be formed. We have 12 out of 19 people being married.

marriage (concretely)Others think logically to solve the problem. The number of husbands must equal the number of wives. The number of husbands and wives are represented by the numerators.  Therefore, the numerators must be made equal. With all due respect to Dr. Math, it just makes sense.

marriage (pictorially)The use of manipulatives to construct meaning continues to be a focus of teachers involved in the numeracy project, both for themselves and for their students. Long before I became involved in this project, my fellow Numeracy Helping Teachers (Marc Garneau, Selina Millar, Sandra Ball, and Shelagh Lim) worked tirelessly to set a climate in which teachers and students felt comfortable using a variety of manipulatives.

At these sessions, we present teachers with problems, not practice. It’s a pleasure to work with such an amazing group of educators so willing to explore, take risks, and persevere. But as much fun as these sessions with teachers have been, I’m looking forward to the real fun: problem-solving with their students.

Update (2020/01/18)

A much more inclusive context!

Posted on

Quadratic Patterns

Having students write an equation that describes a pattern involving toothpicks, pattern blocks, or colour tiles is nothing new. However, students (teachers?) often focus on patterns in the table of values rather than properties of the pattern itself. Visualizing the pattern can help students write the equation. For some, this approach may be new.

For example, consider the following pattern:

In each figure, students may see a rectangle with two squares attached, one above and one below. That rectangle has a width of n and a length of n + 2. The expression is n(n + 2) + 2.

Some students may see the pattern in a different way. But what about the students who don’t see anything? For them, some scaffolding is necessary. Note the scaffolding in the pattern below.

Students may see one red square, two green rectangles, and two blue tiles in each figure. That is, they see n^2 + 2n + 2. The use of colour is intended to be helpful. Of course, some students may ignore this hint. I’m cool with that. They may see a large square with one tile attached, or (n + 1)^2 + 1.

Again, look for the scaffolding in the pattern below.

Students may see a rectangle with a number of tiles being removed, as suggested by the dotted lines. That rectangle has a width of n + 1 and a length of n + 2. The number of tiles being removed is equal to the figure number. Alternatively, students may visualize  2(n + 1) + n^2.

Did you notice that each of the expressions above are equivalent? They must be. Each of the three patterns begin with 5, 10, and 17 tiles. Each pattern/expression tells the same story, but in a different way.

My goal was to design three parallel tasks. Have students choose one of the three representations… just don’t tell them they’re the same.

My three-part lesson plan:

Marc and I created two more sets of patterns. All three:

For more, please see Fawn Nguyen’s Pattern Posters.

Posted on

A Deconstructed Learning Outcome: Sum of Its Parts

Maybe I’ve seen one too many deconstructed Caesar salad or peanut butter and jam sandwich on TV. Or maybe I’ve heard “This workbook covers the curriculum” one too many times¹.

Whatever my reason, I wanted to take a closer look at a learning outcome from the WNCP Math 8 curriculum document:

It is expected that students will demonstrate an understanding of multiplying and dividing positive fractions and mixed numbers, concretely, pictorially, and symbolically [C, CN, ME, PS]

“It is expected that students will”
It’s about students’ learning. Worked examples on the whiteboard or in a textbook may be evidence of the teacher’s or publisher’s learning.

“demonstrate an understanding of”
Not will be able to. Students need to make sense of mathematics. Justifications and explanations are required for answers and methods.

“multiplying and dividing positive fractions and mixed numbers”
This is a topic. Curriculum is more than a collection of these.

“concretely, pictorially, and symbolically”
No longer just suggested, the use of concrete materials (i.e., manipulatives) is prescribed² as is having students draw to represent their thinking (diagrams not decorations).

[C, CN, ME, PS]
From K to 12, seven processes are to be integrated within the learning of mathematics. The ‘C’, for example, means that students should be provided with opportunities to communicate their learning– to write about and discuss mathematical ideas.

¹ To my US reader(s)– in my province, curriculum is different than recommended learning resource (i.e., the textbook). In theory, the textbook is not the course. In practice…

² For many teachers, this is probably the biggest change to the curriculum. Earlier this year, I created the posters below. My intent was to generate conversations among teachers, not to teach the concept. Plus, I got to be artsy-fartsy. Enjoy.


CPS Poster Algebra Tiles
CPS Poster Counters
CPS Poster Pattern Blocks
CPS Poster Toothpicks

Posted on

A Linear Functions Lesson Across the Grades

How many people can sit at 100 (or n) triangular tables? Square tables? Hexagonal tables? What if you join the tables so that one side of the next table touches one side of the previous table?

I appreciate this problem for a few reasons:

  1. I can present it in grades 4 through 10. In grade 4, students write a recursive relationship (e.g., for joined hexagonal tables, start at 2 and add 4 each time). In grade 6, students write a functional relationship (e.g., 4n + 2). In grade 8, students graph a linear relation (e.g., y = 4x + 2). In grade 10, students interpret the slope and y-intercept (e.g., each added table provides 4 additional seats, there are 2 additional seats at the ends of the table). When I teach and discuss this lesson at different grade levels within a school, I think a common activity helps teachers connect the big ideas across the grades.
  2. I can easily adapt and extend the task. When I have taught this lesson in grade 6 (see three-part lesson plan), most students can write an expression for joined square or hexagonal tables. Some students may choose to solve a simpler problem and write an expression for joined triangular tables. Other students can be challenged to write an expression for tables with any number of sides. All students can participate in the class discussion.
  3. The use of pattern blocks can help students gain a deeper understanding. Most students were able to make sense of the 4 in 4n + 2. Each time a table is added to an end, 4 seats are added. (Two seats are lost when tables are joined.) When one student showed how he added tables to the middle rather than an end, this helped his classmates make sense of the 2 in 4n + 2. There are two more tables at the ends. Pattern blocks allow students to make sense of the expression beyond “add 2 to make the numbers in the table of values work”.

This problem appears in several resources including The Super Source.

Posted on

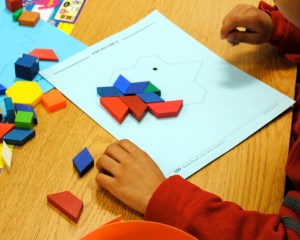

Math Manipulative of the Month – Pattern Blocks

MMM September 2011 Pattern Blocks (colour printer, double-sided)

Last year, a group of Surrey teachers suggested having a “Math Manipulative of the Month” at their school. Instantly, I thought this was a great idea. After this conversation, I created the brochure above. My hope is that this series of brochures can be used to generate conversations between teachers (and students, of course!).

Before trying the problems, I would ask teachers to get to know each MMM and list all they know about them. For example,

  1. “Two reds cover 1 yellow”, “Three triangles make 1 trapezoid”, etc.
  2. “All sides are the same length, except the base of the red trapezoid. It’s twice as long.”
  3. “The orange square and tan rhombus do not cover the other tiles.”

The symmetry problem ended up on the cutting room floor. Here it is: Pattern Blocks Symmetry.

Also, please see how the question “How many ways can you make 360 degrees?” becomes a problem-based lesson in Grade 6. Here’s the three-part lesson plan: Angles (format from Van de Walle).

I attempted to have a balance of primary and intermediate problems. How can each problem be adapted for the grade level that you teach?

Next month… Base Ten Blocks.

Posted on

Revisiting Pictorial Representations of Functions

The K-7 word walls were developed by my Numeracy Helping Teacher colleagues to help students and teachers communicate mathematically. They were not meant to ‘teach’ concepts but to help make visual and conceptual connections. The cards have been very popular with Surrey teachers. The Math 8 cards have been created and we will be sharing them with Surrey secondary teachers starting in September.

See the sample cards to the right. In an earlier post, I mentioned how concrete and pictorial representations of linear functions can enhance understanding. For example, in the expression 2n + 1, the coefficient of 2 can be interpreted as adding 2 tiles as the pattern continues.

The coefficient can also be visualized in another way. It may be easier to describe by looking at the card for constant. In the first figure, we can see two groups of one (one white square above the red square and one white square to the right of the red square). In the second figure, we can see two groups of two (one group of two white squares above the red square and one group of two white squares to the right of the red square). Similarly, in the third figure, we can see two groups of three. Finally, in the nth figure, there will be n groups of 2, or 2n, white tiles.

This can also be an interesting investigation when teaching quadratic functions (or a challenging extension when teaching linear functions). In the pattern to the right, the red squares in the first figure make a 2-by-3 rectangle. The red squares in the second figure make a 3-by-4 rectangle. We can see a 4-by-5 rectangle in the third figure. In the nth figure, there will be a rectangle with width n and length n + 1 . In each figure, there are also two white squares. Therefore, the expression is n(n + 1) + 2.

This pattern, too, can be be visualized in another way. For example, in each figure, the red tiles can be seen as being made up of a square and a rectangle. In the first figure, we can see 2 squares on top of a 2-by-2 square. In the second figure, we can see 3 squares on top of a 3-by-3 square, and so on. In the nth figure, there will be n squares on top of an n-by-n square. Remembering the 2 white squares, the expression is n^2 + n + 2.

The two expressions are equivalent but reflect different ideas.

How do you know that a relationship is linear? quadratic?
How are the pictorial representations of linear and quadratic functions the same? different?

To see more on this approach, visit I Hope This Old Train Breaks Down.

One more thing… I purposely did not circle the groups and shapes discussed above… I didn’t want to take away the fun of visualizing them for yourself.

Posted on

iPad as Mathematical Communication Tool

When children think, respond, discuss, elaborate, write, read, listen, and inquire about mathematical concepts, they reap dual benefits: they communicate to learn mathematics and they learn to communicate mathematically. (NCTM)

In general, I’ve been disappointed with many of the iPad apps categorized under Education. With new apps being added (270/day in June 2011), I’ve got to admit it’s getting better. A little better all the time.

As Orwell Kowalyshyn and/or Kevin Amboe mentioned last spring, apps from other categories such as Games or Photography may provide richer educational opportunities for students.

My daughter (6) is currently enjoying the game Slice It!. The goal is to slice shapes as evenly as possible. The number of slices you are allowed and the number of pieces the shape is to be sliced into is given. The challenges get increasing difficult. I can imagine using this app to explore mathematical concepts such as area, fractions, percents, and line symmetry. Perhaps students could take screenshots and explain their strategies to their classmates. Maybe they could explain how they know the pieces have approximately the same area. (The FAILED text that appears when not sliced into the correct number of pieces may turn off some educators. No noticeable signs of this affecting my daughter, at least so far.)

Students will benefit from iPads in the classroom not because there’s an app for practicing number operations, but because there’s an app for communicating their thinking. ShowMe, ScreenChomp, and Explain Everything have been listed/discussed in many math ed blogs. Students, not their teachers or Sal Khan, can create video explanations using these interactive whiteboard apps.

Meeting with Surrey & Vancouver secondary math teachers this summer, one teacher showed us a picture of two containers each filled with chocolate eggs. The number of eggs in the smaller container was given and we were asked to guess the number of eggs in the larger container (see Dan Meyer’s blog). Using her iPad 2, the teacher filmed us giving and justifying our estimates. In a classroom, teachers or, better yet, students could interview peers, administrators, parents, members of the community, etc. and then share and discuss these guesses and strategies.

One app that I had fun with this summer is iMotion HD. This app allows you to create and share stop motion movies from pictures you have taken. In the video below, I show why 1/2 + 1/3 = 5/6 using pattern blocks.

Using iMovie, I could have added narration but I chose not to. Why? Because I have no plans to share this with students*. I chose not to narrate my movie because students, not the teacher, should be doing the math. In this way, students communicate to learn and learn to communicate.

Khaaan!
photo by pong0814

*Also, I have only one nephew. He is 18 months old and so far has been able to complete his algebra homework without asking his uncle to tutor him. The Khan Academy has already been widely and deservedly criticized by others. Please check out Karim Ani’s An Open Letter to Sal Khan on his Mathalicious blog.
